Additional 4K Ultra HD Wired Security Camera For Defender Sentinel 4K Security System.
TECHNICAL
SPECIFICATIONS
Model number
Frequently Asked Questions
DOES DEFENDER PROVIDE FREE SHIPPING?
DOES DEFENDER PROVIDE FREE SHIPPING?
We are proud to offer free ground shipping to our customers across the 10 Canadian provinces with no minimum purchase required. Free shipping is not available for the Canadian Territories and select areas considered remote by our shipping partners. Shipping fees will be calculated at the Checkout. Estimated delivery is 3-7 business days.
WHAT IS THE RETURN POLICY?
WHAT IS THE RETURN POLICY?
Not what you were expecting? Our no-questions-asked return policy makes it easy for you request a return within 30-days of placing your order. Please Note: Original shipping charges will not be refunded and return shipping costs are the responsibility of the customer.
WHAT IS DEFENDER'S PRICE MATCH GUARANTEE?
WHAT IS DEFENDER'S PRICE MATCH GUARANTEE?
See a lower price on this item from an authorized retailer? Contact our Support Team here or chat live Monday to Friday from 8am-4pm EST with a link and screenshot to the advertised price and we will match it! Conditions apply. Learn more here.
All-in-one cable provides power, video & audio. No BNC cables or camera power adapters required!

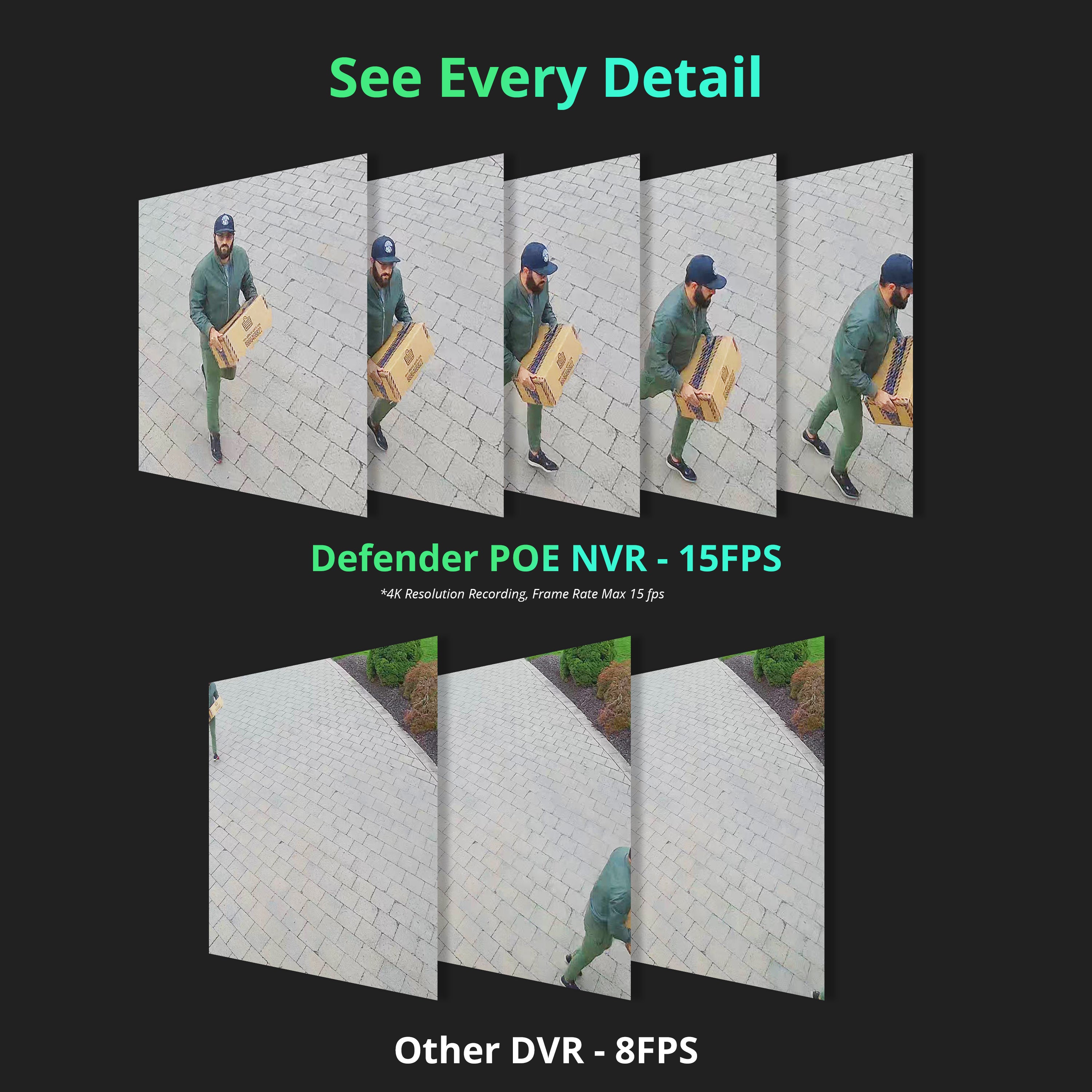

View your footage in brilliant detail and incredible clarity. The Sentinel 4K NVR supports 4K Ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Color Night Vision
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Audio Recording
Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Color Night Vision
View your footage in brilliant detail and incredible clarity with 4K ultra HD. Super sharp video enables you to clearly see faces and licence plates for ultimate peace of mind.
Audio Recording
Sentinel supports crisp sound recording to give your footage the full story. Stream and record high quality, richly detailed audio.
Smart Human Detection
Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.

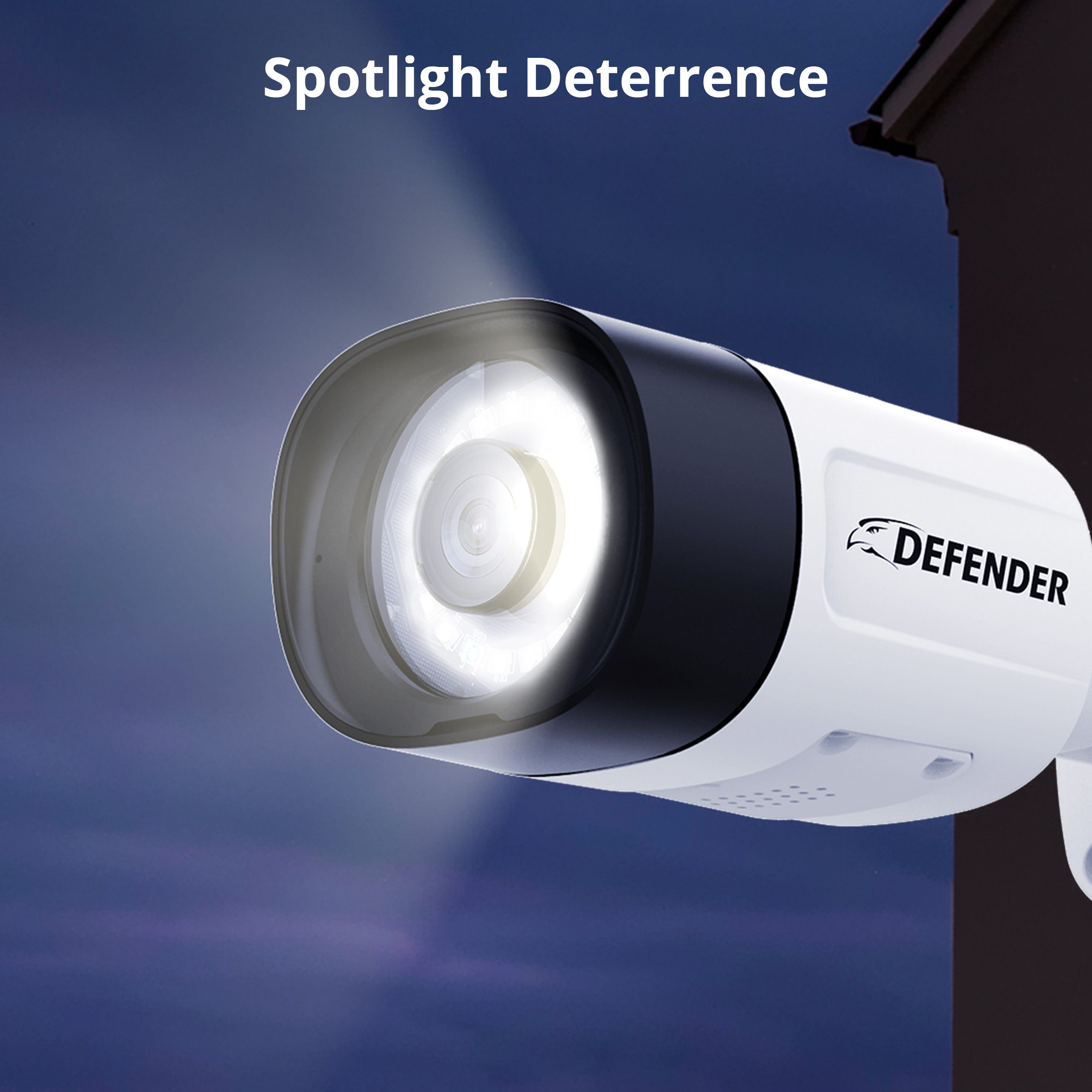

Deterrence Spotlight
Deter intruders and add peace of mind with Sentinel's powerful LED spotlight.
Smart Human Detection
Using an advanced algorithm, Smart Human Detection significantly reduces false alarms that can be triggered by insects, rain, swaying trees, passing vehicles, or animals. Control the motion sensitivity and detection area for even more effective surveillance.
Deterrence Spotlight
Deter intruders and add peace of mind with Sentinel's powerful LED spotlight.
Weather Resistant
Alumunium - IP66
Built for indoor or outdoor use, the camera's durable aluminum housing resists rusting and deterioration.
Weather Resistant Alumunium - IP66
Built for indoor or outdoor use, the camera's durable aluminum housing resists rusting and deterioration.
Technical Specification
Model Number
NS8MPCB1

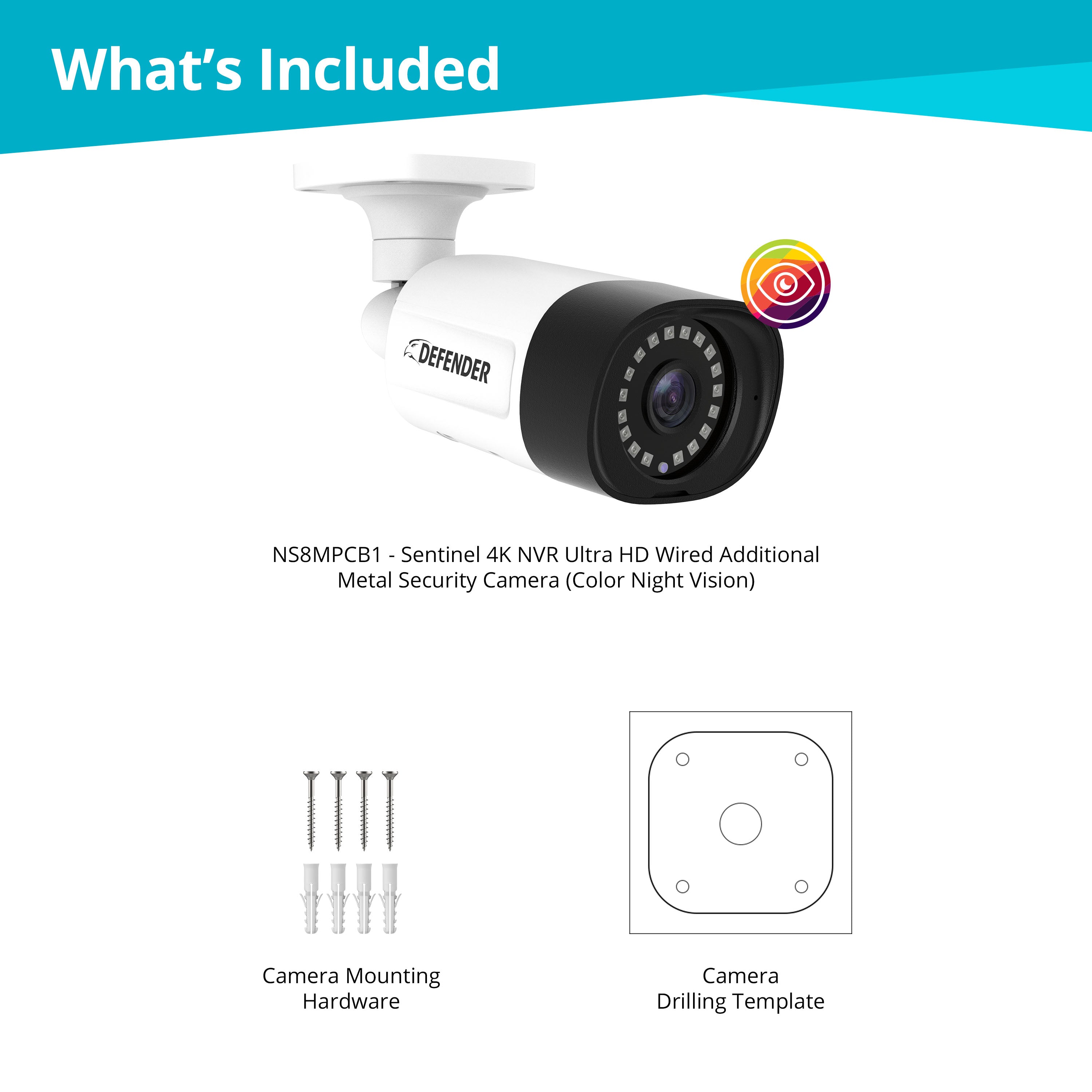

What's Included
1 x Sentinel 4K NVR Ultra HD Wired Additional Security Camera
1 x Camera Mounting Hardware
1 x Drill Template
Camera
Image Sensor: 1/3" CMOS Sensor
Signal System: PAL/NTSC
Min. illumination: Min. illumination Color:0.01Lux@ (F1.2,AGC ON) ;, B/W:0Lux@(IR LED ON)
S/N Ratio: More than 50dB
IR Range: Up to 30 m
# of IR LEDs: 18pcs
IR Distance: 18 infrared lights and 18 white lights; infrared 20 meters, white light 10 meters (varies by environment)
Lens
Lens Type: Fixed focus
Iris: Fixed Iris
Focal Length: 4 mm
Aperture: F2.0
Field of View: 75°
Video
Resolution: Main stream:3840*2160,Sub stream:800*448, 8MP
Frame Rate: Frame Rate Max 15fps,frame rate self-adaption
Video Output: Support AHD/TVI/CVI/CVBS Output
Day/Night: AUTO (ICR infrared filter type) / COLOR / B&W / Ext
OSD Menu: Support
Dynamic Range: Digital WDR
Gain Control: Auto
Noise Reduction: 3D DNR (AUTO/MANUAL 0-20)
White Balance: Auto
BLC: Support
General
Image Settings: Saturation, brightness, contrast, and sharpness can be adjusted by NVR or client
Backlight compensation: Yes
Image reversal: Support horizontal and vertical reversal
Privacy Masking: Yes
Intelligent Alarm: Humanoid detection alarm; motion detection alarm
Alarm Notification: Alarm notification push
Supporting agreement: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IGMP
Interface Protocol: N1/RTSP/ONVIF agreement
Operating Temperature and Humidity: -20℃~50℃,Humidity less than 95% (non-condensing)
Power Adapter: DC 12V/1A (Note: DC12V Φ5.5mm round head power supply must be prepared separately)
Protecition Level: IP66, TVS 4000V lightning protection, surge protection, and surge protection
